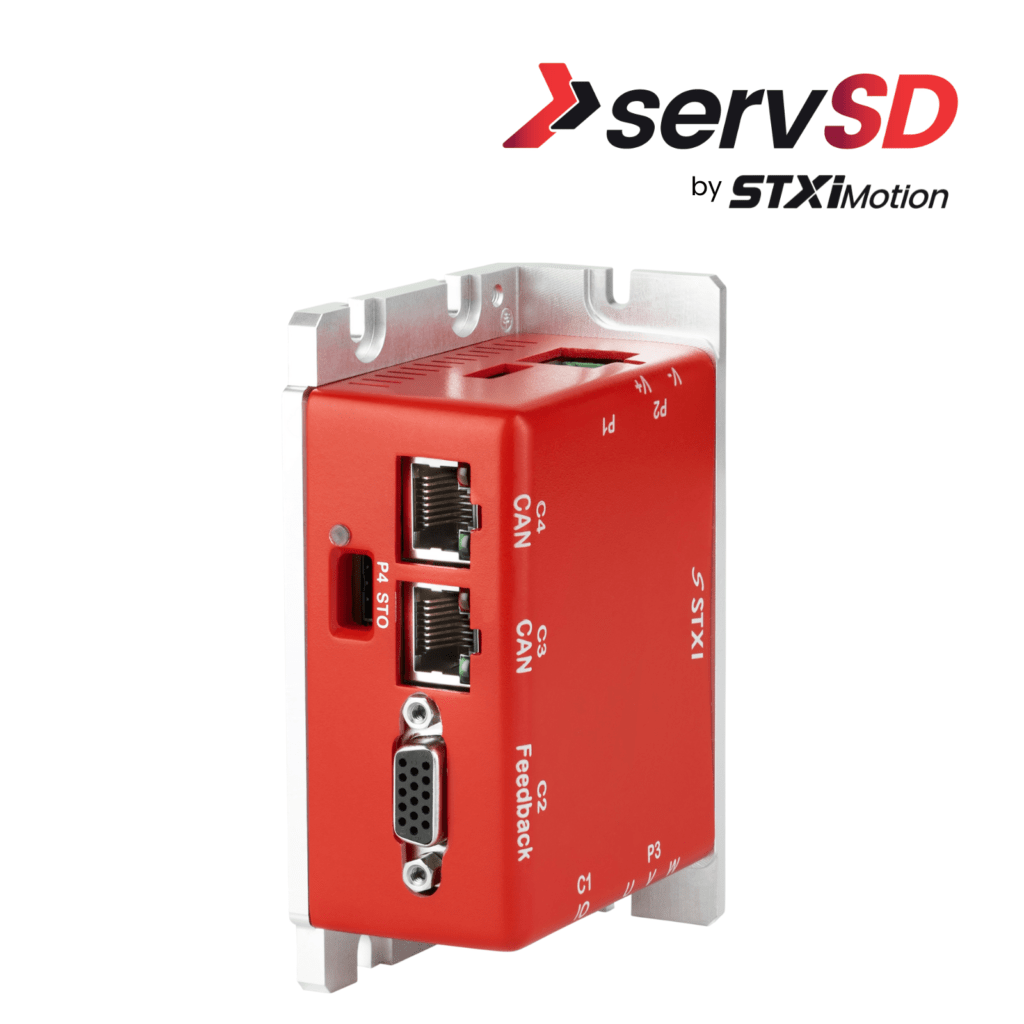

Ready-to-Connect Servo Drive Targets Low-Voltage Applications

STXI Motion <https://stxim.com/> , a global motion control and servo
solutions company, introduces the servSD ready-to-connect low-voltage servo
drive, aimed at applications such as automated guided vehicles/autonomous
mobile robots, electronics assembly, and medical equipment.

The servo drive offers high power density in a small footprint (106 mm wide,
73.6 mm deep, 40 mm high) with near-motor mounting for applications with
tight space constraints. With Safe Torque Off (STO) functional safety, the
servSD meets the full range of safe operation requirements and can be
connected to a master motion PLC or a modular safety controller.

The ready-to-connect drive doesn’t require pin soldering or cable adaptors,
supports common motor feedback types including SSI, incremental, and BiSS,
and uses real-time data exchange for higher levels of axis synchronization
and safer modes of operation. A simple commissioning software with
comprehensive parameterization options offers step-by-step guidance for
motor setup, application configuration, and tuning.

The SD01-030 model offers a 24 VDC input bus, 24 VDC input logic, continuous
current of 30 Arms, and peak current of 100 Arms, while the SD01-025 model
features a 48 VDC input bus, 24 VDC input logic, continuous current of 25
Arms, and peak current of 80 Arms. The new servo drive is the latest in the
company’s existing servo drive portfolio, which includes medium and high
voltage drives for a wide range of applications.

For more information on the servo drives, visit
https://stxim.com/product/servsd-low-voltage-servo-drive/.

About STXI Motion
STXI Motion is a global engineering company that designs and produces motion
control and servo solutions. Our mission is to enable machine builders to
focus on their core business by offering unmatched service, support, and
systems in the field of industrial automation. STXI’s products and solutions
are integrated and connected to offer fully optimized motion systems
tailored to machine requirements.
