In damping forces adjustable suspension for electric Tesla SUV

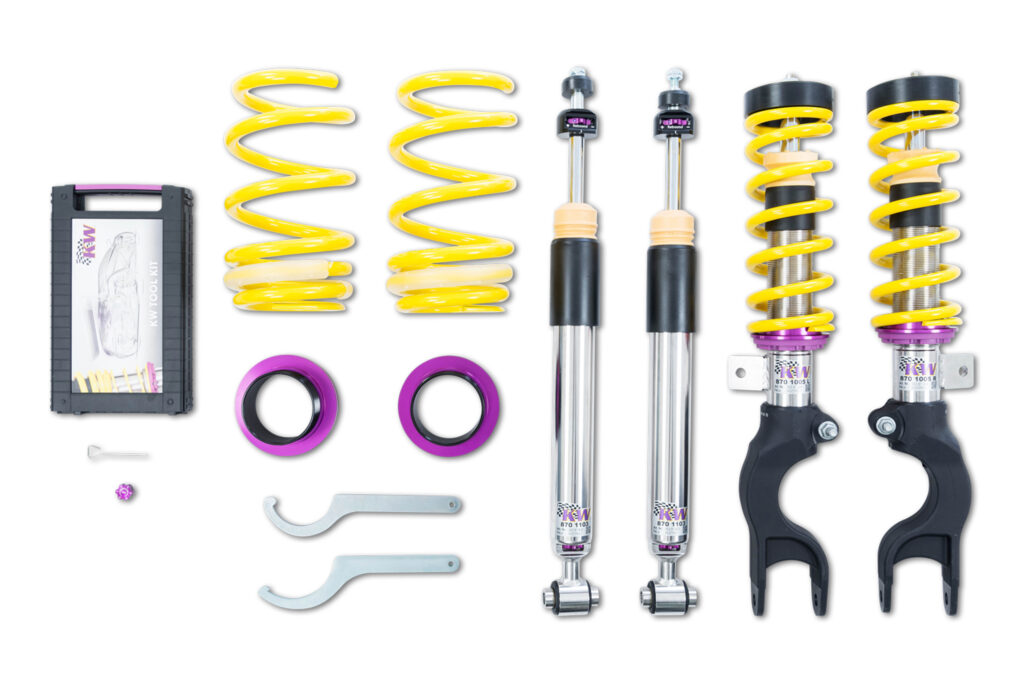

KW automotive, one of the leading aftermarket suspension manufacturers, develops adaptive and manual coilover suspension kits for more and more cars from Tesla. Already for Tesla Model S and Tesla Model 3 are KW coilover kits available. In December 2021 KW automotive launches the KW Variant 3 coilover suspension kit at the Essen Motor Show for Tesla Model Y. The electric-powered SUV benefits from the optional in compression and rebound adjustable KW Variant 3 in handling and better stable support of the higher car body. With the KW coilover suspension kit made of stainless steel both axles of the Tesla Model Y (AWD) are adjustable in the lowering between 25 and 50 millimeters. In development already is the KW Variant 3 coilover suspension kit for the Tesla Model Y with rear-wheel-drive. For further information please visit www.kwsuspensions.net

The suspension manufacturer KW automotive is benefiting from the high demand for Tesla vehicle models in all markets. The compression and rebound forces adjustable KW Variant 3 coilover suspension kit is now available for all Tesla Model Y (AWD). “Our suspension developments for electric vehicles such as the Tesla Model 3 and VW e-up, as well as the plug-in hybrid VW Golf 7 GTE are among our most highly demanded vehicle applications,” says KW Brand Manager Jonas Ehrmann. “In this context, we were surprised by the high demand for coilovers. Since we also offer a suspension for the Model 3, we are approaching a completely new customer group that previously never considered buying a coilover suspension or modifying anything at all on a car.”

The all-wheel-drive Tesla Model Y, which weighs up to two tons, benefits from significantly better support of the electric SUV body by upgrading to a KW coilover suspension. The KW shocks feature a two-stage, multi-valve damper technology that allows the damping forces to be tuned. “With KW Variant 3, we use low-speed and high-speed valves for the compression and rebound forces,” says KW Brand Manager Jonas Ehrmann, describing the damper valve design. Whereas steering and braking on solid, flat-level road surfaces result in slow piston rod speeds, high damper speeds occur on poorly maintained bumpy tarmac even when driving straight ahead. The adjustable low-speed rebound stage influences the rebound during load changes in the compressed state. It’s to adjust the handling characteristics to be stiffer or more comfortable. The low-speed compression stage further influences the steering and pitching behavior of the heavy electric SUV when braking and accelerating. To a certain extent, the compression valve affects the ride comfort. “Our preloaded high-speed compression and rebound valves in the KW Variant 3, which are pre-tuned to the Model Y in the damper assembly, become active when the road surface makes itself felt as a disturbing factor in the wheel’s vertical acceleration in the form of transverse joints, edges or bumps,” explains KW Brand Manager Jonas Ehrmann. “The preloaded valves open, the wheel can compress, and so the Model Y does not lose contact with the road when it encounters bumps.” As a result, the Tesla electric SUV drives significantly sportier with the KW Variant 3 coilover suspension kit without scarifying the residual ride comfort for the better handling. The KW suspension setup is as firm as necessary and as sporty-comfortable as possible in everyday driving. “The German electromobility specialist Nextmove from Leipzig proved that installing a KW Variant 3 in a Tesla Model 3 with rear-wheel drive, that the range increases up to seven percent in conjunction with the standard wheel-tire combination,” KW Brand Manager Jonas Ehrmann continues.

Approved by the technical parts certificate the Tesla Model Y with all-wheel-drive is stepless adjustable on both axles between 25 and 50 millimeters. Already at the Essen Motor Show will be the KW Variant 3 coilover suspension kit available for all Model Y all-wheel-drive models (Long Range AWD and Performance AWD), the market launch of the KW Variant 3 for all Tesla Model Y with rear-wheel-drive will be probably in spring 2022. More at www.kwsuspensions.net

About KW automotive:

The KW entrepreneurial group includes the suspension manufacturer KW automotive with its brands KW suspensions, ST suspensions, ap Sportfahrwerke, as well as the SimRacing brands TrackTime and Ascher Racing. With its immense suspension portfolio, state-of-the-art production technology and its development and test center, KW successfully operates in all markets for more than 25 years. Over the past years, KW automotive has developed over 16 distinct damping technologies in order to fulfill its own requirement of supplying “the perfect suspension for every demand”. Beside its core business, the development and production of manually and adaptively adjustable coilover kits and other suspension components for the aftermarket as well as the range of accessories of various automobile manufacturers in the premium segment, the business field of original equipment for special models and super sports cars of the automotive industry is developing tremendously positively for the German suspension manufacturer. Since KW is a development partner of sophisticated controlled suspension systems, the manufacturer disposes of the entire product portfolio of hydraulics, electronics, sensor technology, control units and damper control systems as well as the necessary know-how for the application and tuning of complex vehicle performance systems from a single source. KW has become an indispensable part of customer motor sports throughout the past years and produces homologated racing dampers and suspensions for a constantly growing number of racing cars of several manufacturers. Software and hardware solutions are further business segments as well as events for virtual motor sports in the scope of the brand RaceRoom. Equally, the suspension manufacturers AL-KO Damping Unit, Belltech and Reiger Suspension as well as the alloy wheels manufacturer BBS are brands of the KW entrepreneurial group. www.kwsuspensions.net

Sat. November 27th, 2021
